Description
OVERVIEW

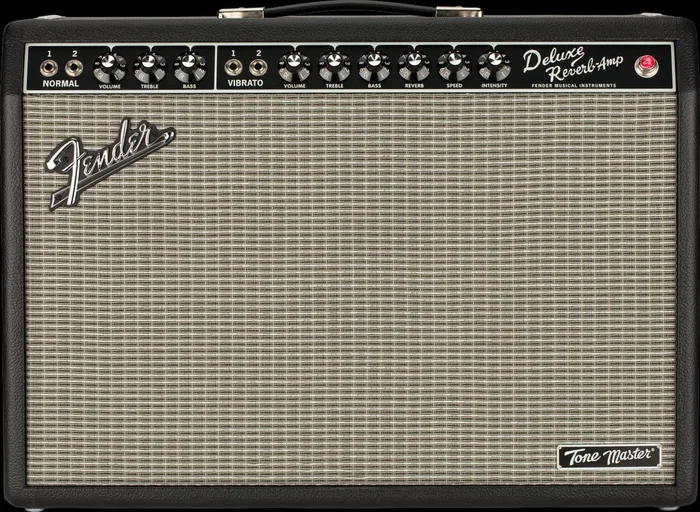

In a bold Fender first, the Tone Master Deluxe Reverb amplifier uses massive digital processing power to achieve a single remarkable sonic feat: faithfully modelling the circuitry and 22-watt power output of an original Deluxe tube amp. Using a high-performance 100-watt digital power amp to achieve the headroom and dynamic range of a real vintage Deluxe tube amp, paired with the pronounced sparkle and clarity of a single Jensen® N-12K neodymium speaker and a resonant pine cabinet, the result is tubeless Deluxe Reverb tone, volume and dynamics virtually indistinguishable from the all-tube original. And with all these features, the Tone Master Deluxe Reverb is in fact about only half the weight of an all-tube Deluxe.
Front panel features give guitarists a playing experience identical to the tube version, including Fender’s world-standard reverb and tremolo effects. Additional rear-panel features deliver modern convenience and flexibility—including an output power selector for full power and five attenuated settings, balanced XLR line output with impulse response (IR) cabinet simulations, mute switch for silent stage or recording use, USB port for firmware upgrades, and more.
General
SERIES
Tone Master®
COLOR
Black
AMPLIFIER TYPE
Digital
COUNTRY OF ORIGIN
CN
Electronics
CONTROL PANEL
Normal: Volume, Treble, Bass; Vibrato: Volume, Treble, Bass, Reverb, Speed, Intensity
INPUTS
Four – (1/4″, Two Normal and Two Vibrato)
LINE OUT
One – (Balanced XLR with Ground Lift and Level Control)
CHANNELS
Two – (Normal and Vibrato)
EFFECTS
Reverb, Tremolo
CONNECTIVITY
USB For Firmware Updates
CONNECTION TYPE
1/4″
VOLTAGE
120V
WATTAGE
100W into 8Ω (Simulates 22W Tube Amp Performance)
Hardware
CONTROL KNOBS
Vintage-Style Skirted Black Plastic
AMPLIFIER COVERING
Black Textured Vinyl
CABINET MATERIAL
Lightweight Solid Pine
GRILLE CLOTH
Silver
HANDLE
Molded Plastic Strap with Nickel-Plated Caps
AMPLIFIER JEWEL
Red (Power), Red/Amber (Warmup), Amber (Mute)
FRONT PANEL
Black
REVERB TANK
DSP
REVERB TANK TYPE
DSP
REAR CONTROL PANEL
Power, Mute, Output Power Selector, Cabinet Simulator, Line Out Level, Ground Lift
Speakers
SPEAKERS
One – 12″ Jensen® N-12K Neo
TOTAL IMPEDANCE
8 ohms
Miscellaneous
POWER CABLE
IEC
Accessories
FOOTSWITCH
2-Button Footswitch Included
Measurements
DIMENSIONS
13.00×22.60×27.40 IN
